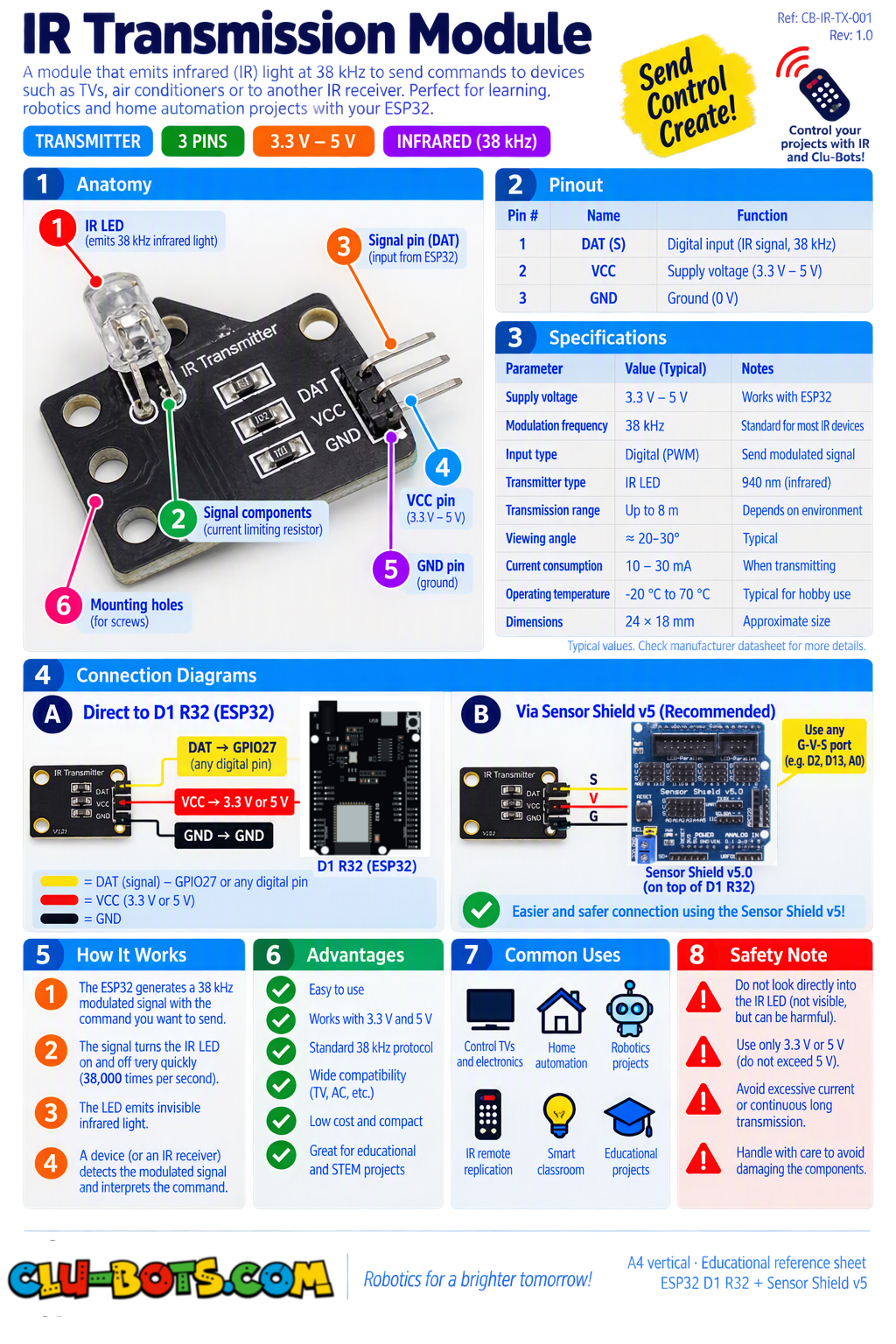

IR Transmission

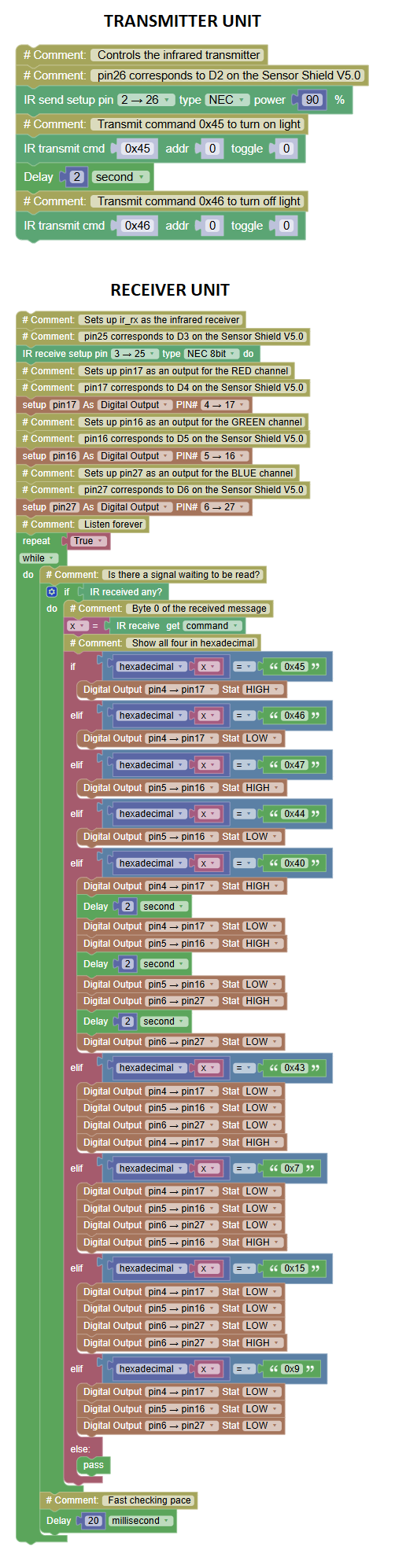

TRANSMITTER UNIT

import irremote
import time
# Controls the infrared transmitter
# pin26 corresponds to D2 on the Sensor Shield V5.0
ir_tx = irremote.NEC_TX(26,False,90)
ir_tx.transmit(0x45,0,0)	# Transmit command 0x45 to turn on light
time.sleep(2)
ir_tx.transmit(0x46,0,0)	# Transmit command 0x46 to turn off light

RECEIVER UNIT, connect to battery, upload the code only once (ALL IN 1)

import irremote
import machine
import time
# Controls the infrared receiver
# Controls pauses and timing
# Sets up ir_rx as the infrared receiver
# pin25 corresponds to D3 on the Sensor Shield V5.0
ir_rx = irremote.NEC_RX(25,8)
# Sets up pin17 as an output for the RED channel
# pin17 corresponds to D4 on the Sensor Shield V5.0
pin17 = machine.Pin(17, machine.Pin.OUT)
# Sets up pin16 as an output for the GREEN channel
# pin16 corresponds to D5 on the Sensor Shield V5.0
pin16 = machine.Pin(16, machine.Pin.OUT)
# Sets up pin27 as an output for the BLUE channel
# pin27 corresponds to D6 on the Sensor Shield V5.0
pin27 = machine.Pin(27, machine.Pin.OUT)
# Listen forever
while True:
    # Is there a signal waiting to be read?
    if ir_rx.any():
        # Byte 0 of the received message
        x = ir_rx.code[0]
        # Show all four in hexadecimal
        if hex(x) == '0x45':	c
            pin17.value(1)
        elif hex(x) == '0x46':	# turn off light
            pin17.value(0)
        elif hex(x) == '0x47':	# turn on light
            pin16.value(1)
        elif hex(x) == '0x44':	# turn off light
            pin16.value(0)
        elif hex(x) == '0x40':	# turn off all lights
            pin17.value(1)
            time.sleep(2)
            pin17.value(0)
            pin16.value(1)
            time.sleep(2)
            pin16.value(0)
            pin27.value(1)
            time.sleep(2)
            pin27.value(0)
        elif hex(x) == '0x43':	# turn on the red light
            pin17.value(0)
            pin16.value(0)
            pin27.value(0)
            pin17.value(1)
        elif hex(x) == '0x7':	# turn on the green light
            pin17.value(0)
            pin16.value(0)
            pin27.value(0)
            pin16.value(1)
        elif hex(x) == '0x15':	# turn on the blue light
            pin17.value(0)
            pin16.value(0)
            pin27.value(0)
            pin27.value(1)
        elif hex(x) == '0x9':	# turn off all the lights
            pin17.value(0)
            pin16.value(0)
            pin27.value(0)
        else:
            pass
    # Fast checking pace
    time.sleep_ms(20)

💡 Note: for a heartbeat after firing, busy() was True your code was still shouting in light. No glow, no sound, yet 0x45 crossed your desk and came home. If you see "Nothing heard", the fix is physical, not code: point the transmitter's LED straight at the receiver's dome. With invisible light, alignment IS the connection.

import irremote
import machine

# Controls the infrared transmitter
# pin26 corresponds to D2 on the Sensor Shield V5.0
ir_tx = irremote.NEC_TX(26,False,90)
# Transmits command 0x45
while True:
    y = input('Type ON to turn the light on or OFF to turn it off.')
    if y == 'ON':
        ir_tx.transmit(0x47,0,0)
    elif y == 'OFF':
        ir_tx.transmit(0x44,0,0)
    else:
        y = input('Type ON to turn the light on or OFF to turn it off.')

Serial Monitor:

=== SEND AND CONFIRM ===

Sent: 0x41 - waiting for the echo...

>>> Confirmed! It arrived as 0x41

Sent: 0x42 - waiting for the echo...

>>> Confirmed! It arrived as 0x42

Sent: 0x43 - waiting for the echo...

>>> Confirmed! It arrived as 0x43

 All three letters made the round trip!

💡 Note: two new ideas in one program. ① The list [0x41, 0x42, 0x43] a box holding several values, and for letra in letters visits each one (you peeked inside lists during the Wi-Fi scan). ② Send-then-wait-for-confirmation engineers call the confirmation an ACK, and it is how the internet guarantees delivery: no new packet until the old one is confirmed. Notice what your waiting loop guaranteed: nothing gets lost silently the program simply refuses to move on until the letter comes home.

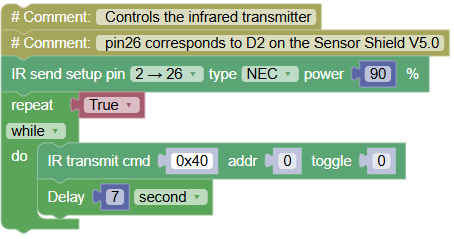

import irremote
import time

# Controls the infrared transmitter
# pin26 corresponds to D2 on the Sensor Shield V5.0
ir_tx = irremote.NEC_TX(26,False,90)
while True:
    ir_tx.transmit(0x40,0,0)
    time.sleep(7)

Serial Monitor:

=== THE IMPERSONATOR ===

This board will fool ITSELF...

The board believed: BUTTON ONE

The board believed: BUTTON ONE

The board believed: BUTTON ONE

A receiver cannot tell a remote from a robot!

💡 Note: the crime and the deception happened on the same desk, in front of the same screen and the receiver still believed it. That is the power and danger of a public protocol: whoever speaks NEC is believed. This is exactly how universal remotes command your TV and why real car keys use rolling codes that change every press: a copied signal must stop working. Two modules and one desk just taught you why digital security exists.

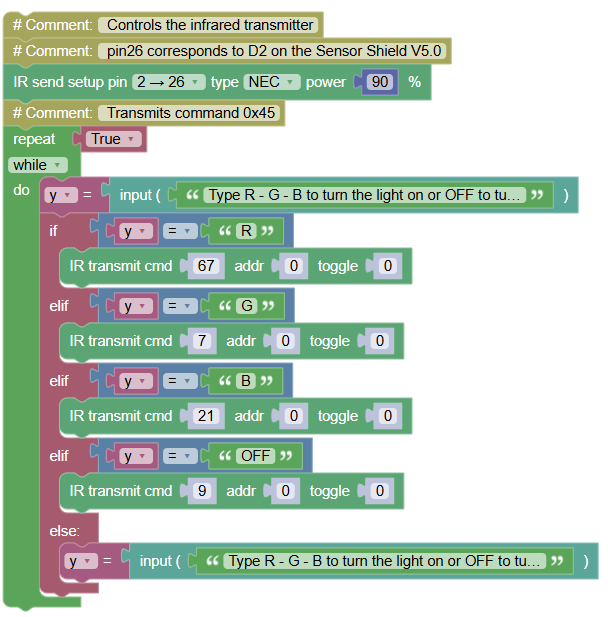

import irremote
import machine

# Controls the infrared transmitter
# pin26 corresponds to D2 on the Sensor Shield V5.0
ir_tx = irremote.NEC_TX(26,False,90)
# Transmits command 0x45
while True:
    y = input('Type R - G - B to turn the light on or OFF to turn it off.')
    if y == 'R':
        ir_tx.transmit(0x43,0,0)
    elif y == 'G':
        ir_tx.transmit(0x7,0,0)
    elif y == 'B':
        ir_tx.transmit(0x15,0,0)
    elif y == 'OFF':
        ir_tx.transmit(0x9,0,0)
    else:
        y = input('Type R - G - B to turn the light on or OFF to turn it off.')

Serial Monitor (a hand blocked packets 4, 5 and 6):

=== DELIVERY REPORT ===

10 packets leaving block the beam mid-volley!

Sent: 1 2 3 4 5 6 7 8 9 10

Arrived: 1 2 3 - - - 7 8 9 10

💡 Note: the volley takes about 2.5 seconds enough time to slide your hand between the modules for packets 4–6. The dashes are detected losses: the numbering does the detective work, no guessing. This is precisely how the internet measures itself every data packet carries a number, and gaps mean "resend that one." Run the report three times: clean, blocked, and with the transmitter rotated 45°. Fill your own table that table is your link's personality card, same as the dead-zone maps you made for motors.
