🖥️ 0.96‑inch OLED Display (128×64)

📌 Description

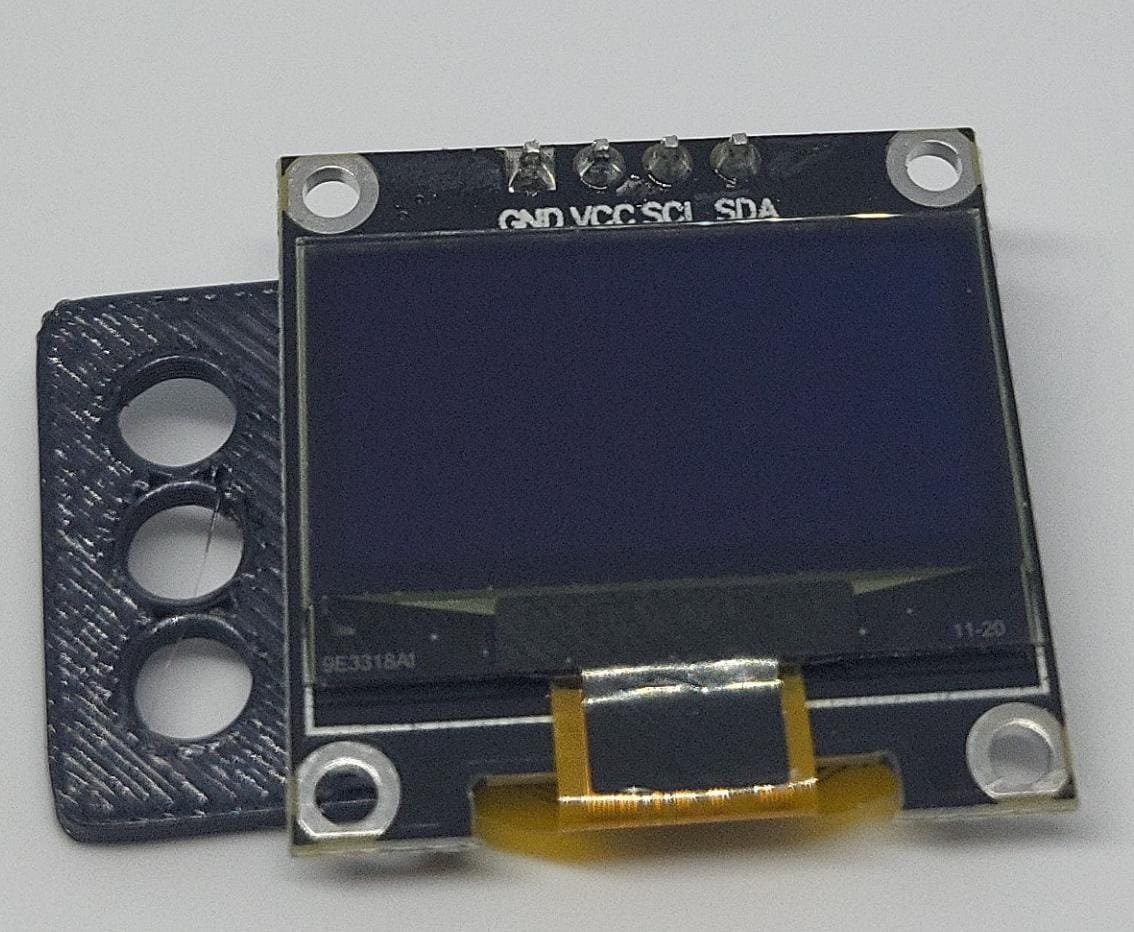

The 0.96‑inch OLED display is a compact screen that can show text, numbers, and simple graphics. It uses the SSD1306 driver chip and communicates with the microcontroller via I2C (only 4 pins: VCC, GND, SDA, SCL). Compared to the 0.91‑inch version, this one has a higher resolution (128×64), which means more space for text and images.

🎯 Use

In our projects, the OLED 128×64 is used to:

Display multiple lines of text.
Show sensor readings or robot status.
Draw icons, logos, or simple animations.

👉 Think of the OLED as the robot’s dashboard — it shows information clearly and compactly.

Module parameters

Pin name	Description
GND	GND (Power Input Negative)
VCC	VCC (Power Input Cathode)
SCL	Clock signal communication pin
SDA	Bidirectional data communication pins

Supply voltage: 3.3V/5V
Connection: PH2.0 terminal wire
Installation method: four-screw fixation

🖥️ Code Explanation

import machine
import oled128x64
from expression_picture import Heart

# Configure I2C communication (pins 22 = SCL, 21 = SDA)
i2c_extend = machine.SoftI2C(scl = machine.Pin(22), sda = machine.Pin(21), freq = 100000)

# Initialize OLED with SSD1306 driver, address 0x3c
oled = oled128x64.OLED(i2c_extend, address=0x3c, font_address=0x3A0000, types=0)

# Display text in different positions
oled.shows('Clu-Bots', x = 0, y = 0, size = 1, space = 0, center = True)   # Centered on line 1
oled.shows('Clu-Bots', x = 0, y = 10, size = 1, space = 0, center = False) # Left aligned on line 2
oled.shows('Clu-Bots', x = 0, y = 30, size = 1, space = 0, center = True)  # Centered on line 3

# Display a heart image at position (0,45)
oled.image(Heart, x = 0, y = 45, size = 1)

Step by Step

import machine, oled128x64 → Tools for pins and OLED control.
from expression_picture import Heart → Imports a predefined heart image.
i2c_extend = machine.SoftI2C(...) → Sets up I2C communication using pins 22 (SCL) and 21 (SDA).
oled = oled128x64.OLED(...) → Initializes the OLED display with SSD1306 driver at address 0x3c.
oled.shows(...) → Displays the text “Clu‑Bots” in different positions (centered or left aligned).
oled.image(...) → Draws the heart image at the bottom of the screen.

👉 Together, this program shows text in multiple styles and an image on the OLED.

✅ Conclusion of the Test

If the OLED shows “Clu‑Bots” in different positions and a heart icon at the bottom, the program is working correctly.
This test demonstrates how the robot can combine text and graphics on a small OLED screen.
Later, you can use this display to show menus, sensor values, or animations to make the robot more interactive.
