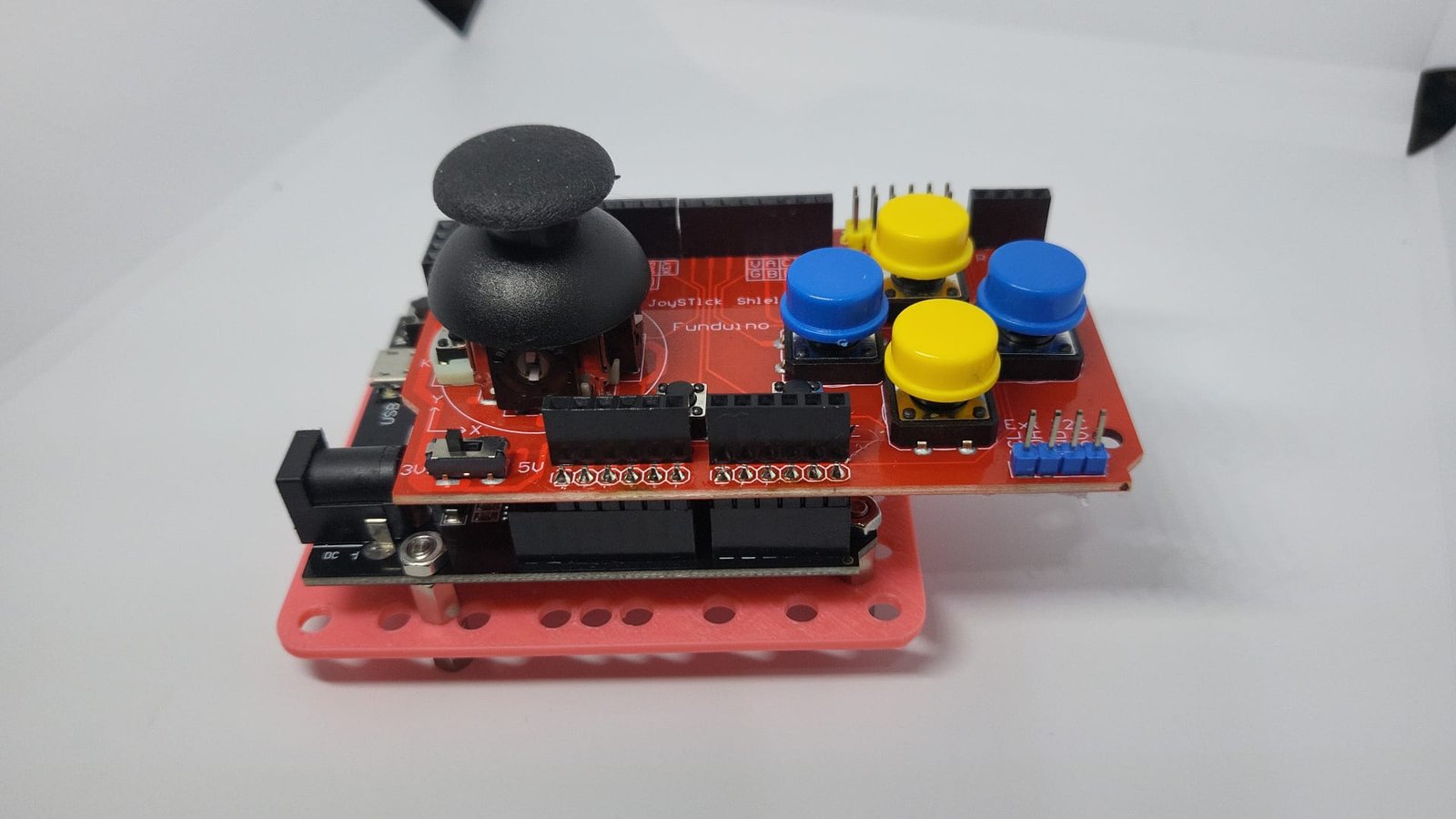

🎮 Joystick Shield V1.A

📌 Description

The joystick shield is like a game controller for the robot. It has a small stick that can move in different directions (X and Y) and several buttons that can be pressed.

🎯 Use

In our projects, the joystick is used to:

• Control movement (forward, backward, left, right).
• Send signals to start or stop actions.
• Combine with buttons to give more commands.

👉 Think of the joystick as the robot’s remote control — you move the stick or press buttons, and the robot reacts.

 Module parameters

Pin name	Description
G	GND (Power Input Negative)
V	VCC (Power Input Cathode)
X	Analog signal pins
Y	Analog signal pins

---

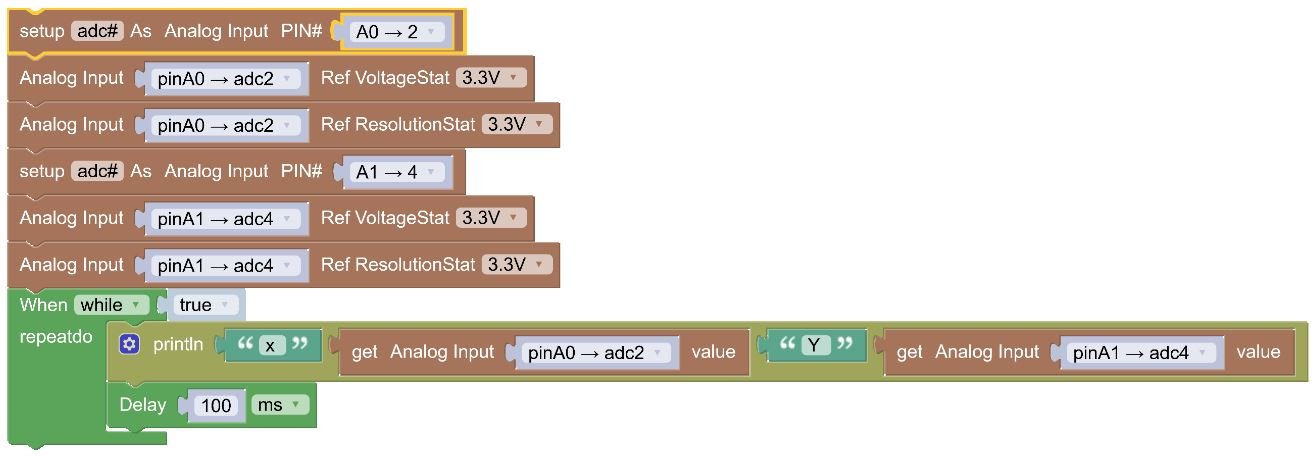

🖥️ Code Explanation – Joystick Only

import machine
import time

adc2 = machine.ADC(machine.Pin(2))   # Joystick X-axis
adc2.atten(machine.ADC.ATTN_11DB)
adc2.width(machine.ADC.WIDTH_12BIT)

adc4 = machine.ADC(machine.Pin(4))   # Joystick Y-axis
adc4.atten(machine.ADC.ATTN_11DB)
adc4.width(machine.ADC.WIDTH_12BIT)

while True:
    print('x ', adc2.read(), 'Y ', adc4.read())   # Show joystick position
    time.sleep_ms(100)

Step by Step

1. adc2 and adc4 → These read the joystick’s X and Y positions.
2. atten and width → Settings to make the readings more accurate.
3. while True: → Loop that repeats forever.
4. print('x ', adc2.read(), 'Y ', adc4.read()) → Shows the joystick’s position on the screen.
   👉 Moving the joystick changes the numbers for X and Y.

---

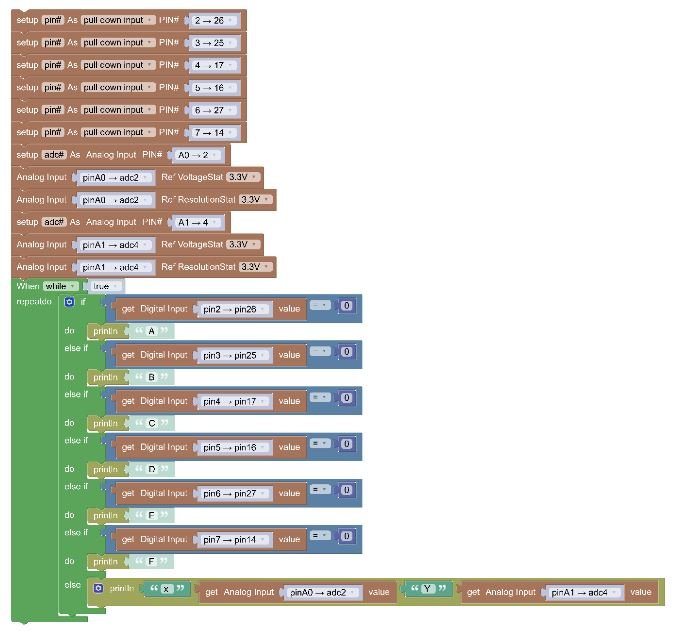

🖥️ Code Explanation – Joystick + Buttons

import machine

# Buttons
pin26 = machine.Pin(26, machine.Pin.IN, machine.Pin.PULL_DOWN)  # A
pin25 = machine.Pin(25, machine.Pin.IN, machine.Pin.PULL_DOWN)  # B
pin17 = machine.Pin(17, machine.Pin.IN, machine.Pin.PULL_DOWN)  # C
pin16 = machine.Pin(16, machine.Pin.IN, machine.Pin.PULL_DOWN)  # D
pin27 = machine.Pin(27, machine.Pin.IN, machine.Pin.PULL_DOWN)  # E
pin14 = machine.Pin(14, machine.Pin.IN, machine.Pin.PULL_DOWN)  # F

# Joystick
adc2 = machine.ADC(machine.Pin(2))   # X-axis
adc2.atten(machine.ADC.ATTN_11DB)
adc2.width(machine.ADC.WIDTH_12BIT)

adc4 = machine.ADC(machine.Pin(4))   # Y-axis
adc4.atten(machine.ADC.ATTN_11DB)
adc4.width(machine.ADC.WIDTH_12BIT)

while True:
    if pin26.value() == 0:
        print('A')
    elif pin25.value() == 0:
        print('B')
    elif pin17.value() == 0:
        print('C')
    elif pin16.value() == 0:
        print('D')
    elif pin27.value() == 0:
        print('E')
    elif pin14.value() == 0:
        print('F')
    else:
        print('x ', adc2.read(), 'Y ', adc4.read())

Step by Step

1. Pins 26–14 → Each button is connected to a pin.
2. Joystick X and Y → Read the stick’s position.
3. while True: → Loop that repeats forever.
4. If button pressed → Prints the button’s name (A–F).
5. Else → Prints joystick position.
   👉 This way, the program shows either the button pressed or the joystick’s movement.

---

✅ Conclusion of the Test

• If moving the joystick changes the X and Y numbers, the joystick works.
• If pressing a button prints its letter (A–F), the buttons work.
• This test shows how the shield can be used as a controller: joystick for direction, buttons for actions.
• Later, instead of just printing, the robot can use these inputs to move motors, turn lights on, or trigger sounds.
